Most interior
doors in a metro Atlanta home are 80 inches tall and between 24 and 36 inches
wide, with 30 and 32 inches covering the majority of bedrooms and bathrooms.

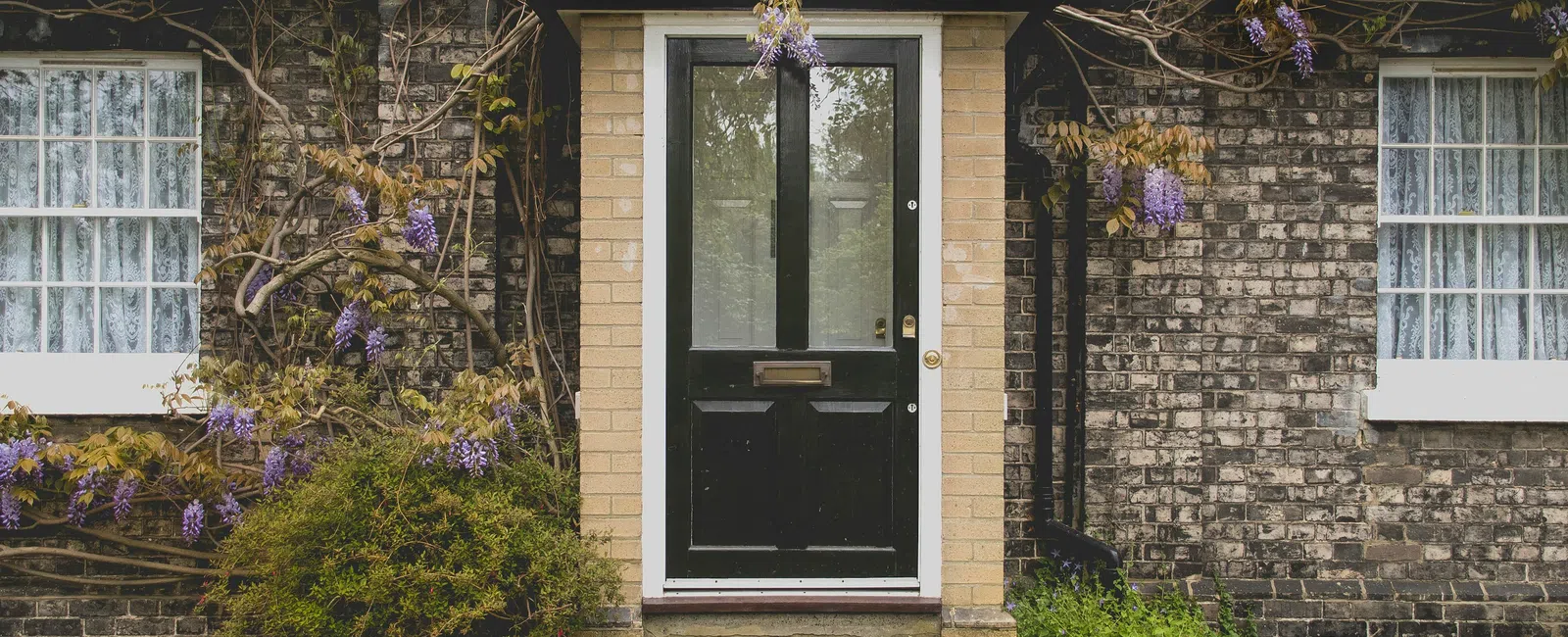

Exterior entry doors are usually 36 by 80.
Those numbers
are easy to look up. They are also not the measurement that decides whether a
replacement goes in cleanly. That one is the rough opening, the framed hole in
the wall hiding behind the casing, and homeowners never see it until the old
jamb comes out. Due to the size of the slab hanging on the wall, the unit can still miss by two inches in either direction.
Interior Doors Run 80
Inches Tall and 24 to 36 Inches Wide
Door sizes get
called out in feet and inches, so a 2/8 door is 2 feet 8 inches, or 32 inches
wide. Suppliers and framers both use that shorthand, and it shows up on plans
more often than the inch measurement does.
|
Callout |
Size |
Where it usually goes |
|
2/0 |
24 in. x 80 in. |
Linen and small closets, powder rooms in older
homes |
|
2/4 |
28 in. x 80 in. |
Closets, small secondary bathrooms |
|
2/6 |
30 in. x 80 in. |
Secondary bedrooms, hall bathrooms |
|
2/8 |
32 in. x 80 in. |
Bedrooms, main bathrooms, laundry |
|
3/0 |
36 in. x 80 in. |
Primary bedrooms, any opening meant to stay
accessible |
Height is the
more predictable dimension. Eighty inches has been the residential default for
decades, which is why 6/8 rarely appears on a plan at all. Newer construction
and renovations with taller ceilings increasingly use 96-inch doors, and a few
builders split the difference at 84. In an existing home, assume 80 until
measured.
Exterior, Patio and Closet
Doors Follow Their Own Sizing
Entry doors are most often 36 by 80, with 30- and 32-inch units available for side and secondary entrances. Sliding patio doors are sized by the full unit rather than the panel, commonly 60, 72, or 96 inches wide by 80 inches tall. French doors come as pairs of 30- or 36-inch panels, so a pair of 36s needs an opening framed for 72 inches of door plus the jamb.
Closet doors
are the exception to everything above. Bypass and bifold units are ordered to
the finished opening, not to a slab dimension, which is why a 60-inch bifold
set fills a 60-inch opening rather than needing 62.
The Rough Opening Is the
Number That Decides the Job
A prehung door
arrives as a slab already hung in its jamb. That unit has to drop into the
framed opening with enough room around it to be shimmed plumb and square,
because no wall is either. The standard convention adds about 2 inches to the
slab width and about 2.5 inches to the height.
|
Door size |
Typical rough opening |
Common use |
|
24 in. x 80 in. |
26 in. x 82.5 in. |
Closet, powder room |
|
28 in. x 80 in. |
30 in. x 82.5 in. |
Closet, small bath |
|
30 in. x 80 in. |
32 in. x 82.5 in. |
Bedroom, hall bath |
|
32 in. x 80 in. |
34 in. x 82.5 in. |
Bedroom, main bath |
|
36 in. x 80 in. |
38 in. x 82.5 in. |
Primary bedroom, entry |
A 32 Inch Door Does Not
Give 32 Inches of Clear Passage
This is the
detail that catches people moving furniture or planning for a walker or
wheelchair. A 32-inch door has a 32-inch slab, but clear width is measured through the opening with the door swung back to 90 degrees, and the door thickness plus the stop take roughly two inches out of it. The usable gap is
closer to 30.
Work backward from the clear width needed rather than forward from the slab size. A 36-inch door is the practical way to get a true 32 inches of clear passage, which is why it shows up on accessible layouts and on at least one door in every code-compliant house.
Widening an Opening Is
Framing Work, Not Door Work
Going from a 30
to a 36 is not a bigger door; it is a bigger hole. The studs on one or both
sides come out, a new header gets set and supported on fresh trimmers, and the
drywall, casing, and baseboard all get patched back. Anything running through
that section of wall has to move first, and switches, outlets, supply lines, and
duct runs are all common in the stud bay next to a doorway.
The header is
where it stops being carpentry. On an interior partition, the span is
straightforward. On a wall carrying floor or roof load above, the header has to
be sized for that span, and identifying
whether the wall is load-bearing is the first thing to settle, before
anyone opens the ceiling or orders a door. Widened openings come up most often
during a
kitchen remodel, where a cased opening between the kitchen and a dining or
living space gets pushed wider than the original framing allowed.
Reusing the Existing Jamb
Only Works If It Is Still True
A slab swap, hanging a new door in the jamb already there, is the faster path, and it works when the jamb is plumb, the opening is square, and the new slab matches the old one in thickness, swing, and hinge placement. Older homes rarely hand over all
four.
A prehung unit
is the better answer when the jamb is damaged, out of plumb, or has moved with
the house. If the current door already sticks at
the top or refuses to latch, the opening itself is probably out of square,
and hanging a new slab in it only moves the problem onto a new door.
Frequently Asked Questions
Is 36x80 a standard door size?
Yes. It is the
most common exterior entry size and the widest of the common interior sizes. It
is also the size usually specified when an opening needs to meet the code
minimum for clear width.
Is a 32-inch door actually 32 inches?
The slab is.
The passage is not. With the door open 90 degrees, the door thickness and the
stop cut the clear width to roughly 30 inches.
Will a 30-inch door fit in a 32-inch opening?
It depends on which 32 inches is being measured. If that is the framed rough opening, then yes, a 30-inch prehung unit is exactly what it was framed for. If that is the width of the door currently hanging there, then no, and a 32-inch unit is the correct replacement.
What is the standard bedroom door size?
Most bedrooms get a 30- or 32-inch door at 80 inches tall. Primary bedrooms more often get 32
or 36. Hall and secondary bathrooms are commonly 28 or 30.
Are eight-foot doors standard now?
They are common
in new construction and in renovations with ceilings above nine feet, and they
make a room read taller. In existing homes, 80 inches is still the default, and
switching to 96 means reframing every opening involved, not just buying taller
doors.
